Welcome to Dinanath Precision Clampings



About us

Company Profile

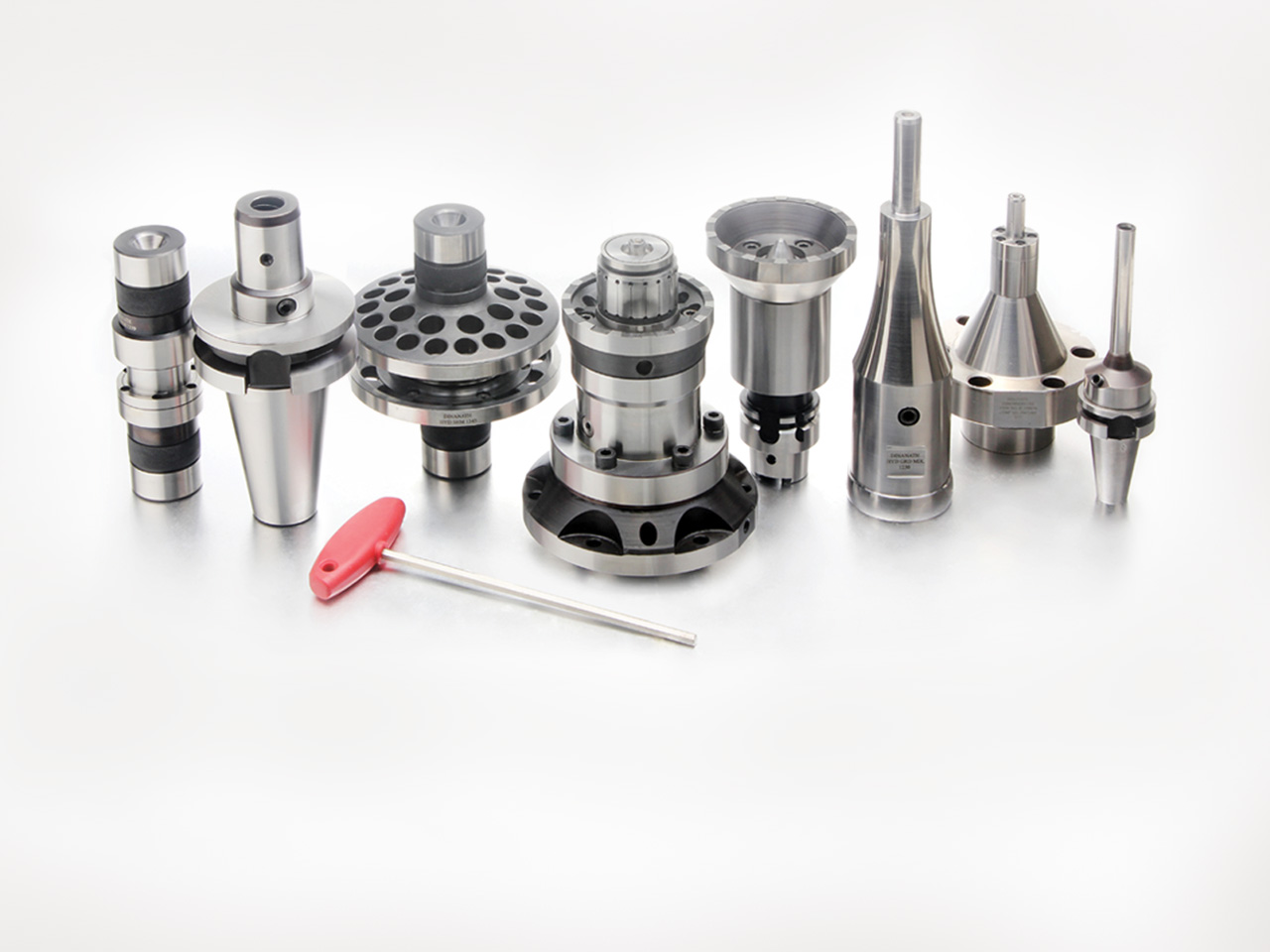

Dinanath Precision Clampings had taken roots in the year 2000 to provide quality clamping solutions to the industry. Presently the company is engaged in designing and manufacturing of custom built hydraulic expanding mandrels for Gear manufacturing and other precision applications for automobile industry in India and Globally. The Company was founded by Mr. Sandeep Patil. He had his previous experience in the field of manufacturing and assembly of fixtures and special purpose machines. In the initial years the company supported industries in and around Aurangabad for various clamping solutions mainly with collet type and other mechanical fixtures. Right from the start, the vision of the director of company is very clear to provide their customers world class quality and development of import substitutes.


Story behind the development of hydraulic expanding mandrels


In 2009 Mr. Prasad Sherkar joined the company as technical director. Previously he was working in Mahindra and Mahindra Ltd. His strong knowledge of design became a strong plus point for the company. In the expansion phase of company thereafter they felt the need to create a differentiator in the fixture market and were on the look-out to design and manufacture a product which will give them the edge and bring larger benefits to their customers. That’s when they shortlisted a product –hydraulically expanding mandrels (arbors/chucks) which they could locally design and manufacture in-house which will provide immense benefits to the Indian industry not only in terms of cost but quality as well serviceability. After core R&D of 6 months they became successful and first product came out. Due to their quality oriented approach in just 3 years the company received overwhelming response and the brand spread widely. Being local in India, Dinanath is able to provide superior service to their large customer base while promoting Dinanath brand to the global industry.


Some of the satisfied large customers include Sanjeev Auto Components, Bharat Gears, Ashok Leyland Ltd., Bajaj Auto Ltd., Eaton, Volvo Eicher Commercial Vehicles, Motherson, Oerlikon and likewise. Currently Dinanath has a team of 5 designers and 7 draughtsmen to design hydraulic mandrels for variety of applications while the mandrels get manufactured in their Aurangabad factory. So far Dinanath has developed and supplied more than 1000 customized hydraulic mandrels for its customers and still counting!! Dinanath Precision Engineering is experiencing rapid growth and look forward to work with many more industries globally to provide cost effective hydraulic clamping solutios.

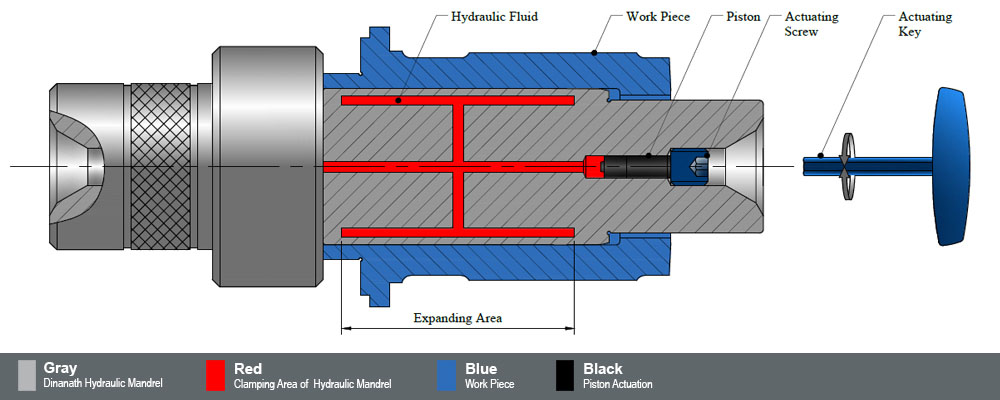

HYDRAULIC MANDRELS- PRINCIPLE OF WORKING


Hydraulic expanding mandrels (arbors/ chucks) function by expanding or compressing under hydraulic pressure. The hydraulic system is integral and may be manually or power actuated. Extreme accuracy in component location is assured as the sleeves expand or contract under equalised hydraulic pressure uniformly from their geometric axis within 0.003 mm or less if required. Diagram below shows function of a hydraulic mandrel.



WHY HYDRAULIC CLAMPING TOOLS

Spindles of modern machine tools have constantly improved their accuracy year after year. Clamping technology needs to be maximum precise and reliable in manufacturing and inspection to support it. There are a variety of expanding clamping tools available in market having their own advantages and disadvantages. The conventional clamping tools get affected by dust and chips and are unable to retain accuracy in long life and therefore for precision manufacturing not reliable. Hydraulic expanding mandrels overcome all these problems. Here is the list of some advantages-


1) Hydraulic tools have no external moving parts and therefore free from the problems created in mechanical tools due to dirt and dust. The complete system of hydraulic tools is sealed.

2) No separate power pack is required and the complete system is in-built and free from regular maintenance. We assure min. 50000 cycles trouble free running. However field results have shown that they run far beyond that if used properly. Refilling can be done after that at our end or if required the customer can also be trained for that.

3) There is no line contact in between job and tool as in case of collet type and therefore high precision, concentricity and higher torque is achieved in hydraulic tools.

4) For thin components desired clamping pressure can be implemented controlling the actuation stroke ensuring protection of component from distortion.

5) Due to the flexible sleeve used in hydraulic tools multiple component clamping is possible without any effect on accuracy which might be perhaps a dream for conventional tools.

6) The hydraulic fluid creates dampening effect while machining operation is performed. This results in absorption of tool chatter resulting better finish and increased tool life by nearly 70%. The ultimate result is improved job quality and low tooling cost.

Gear Grinding




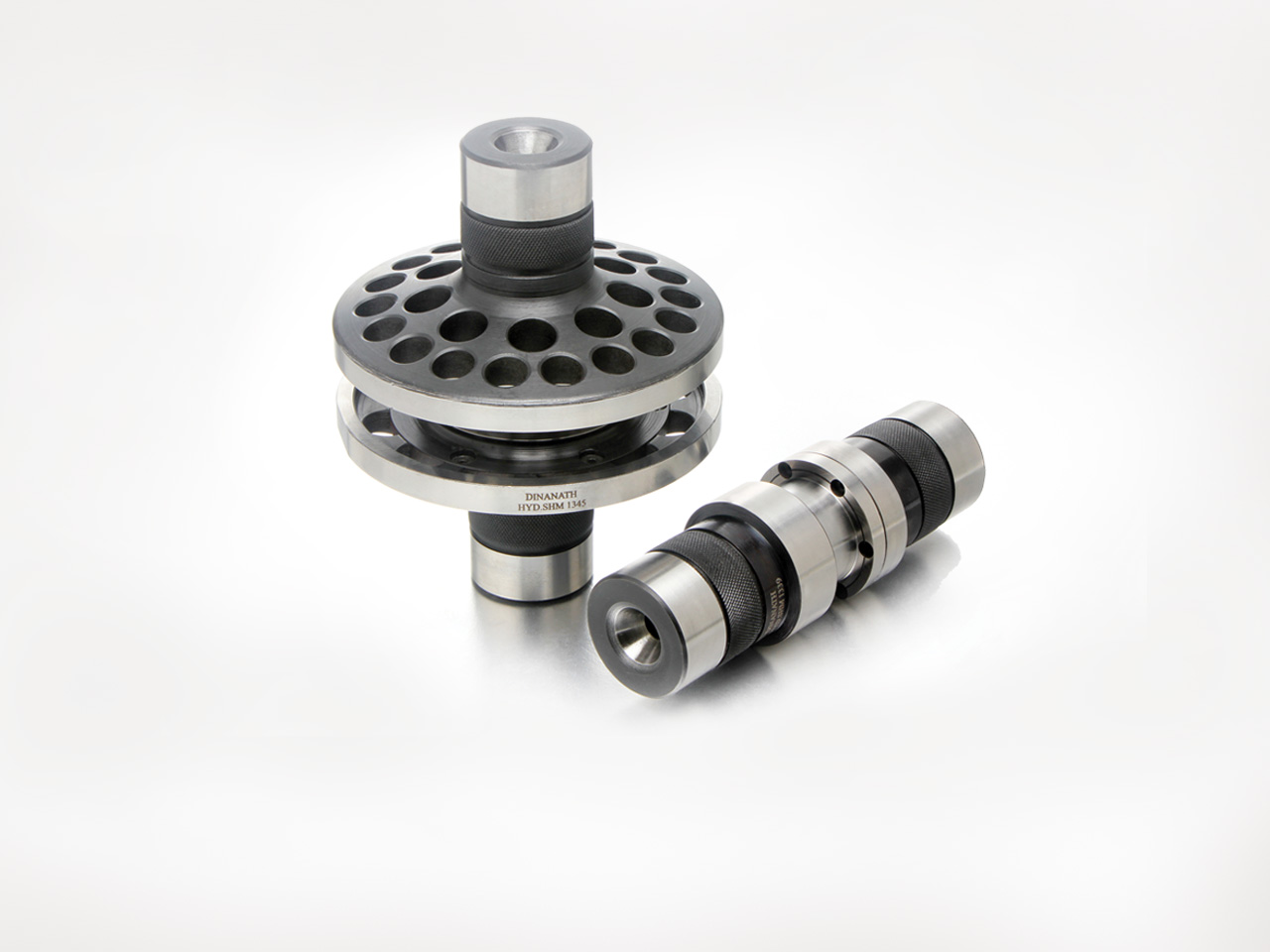

GEAR GRINDING

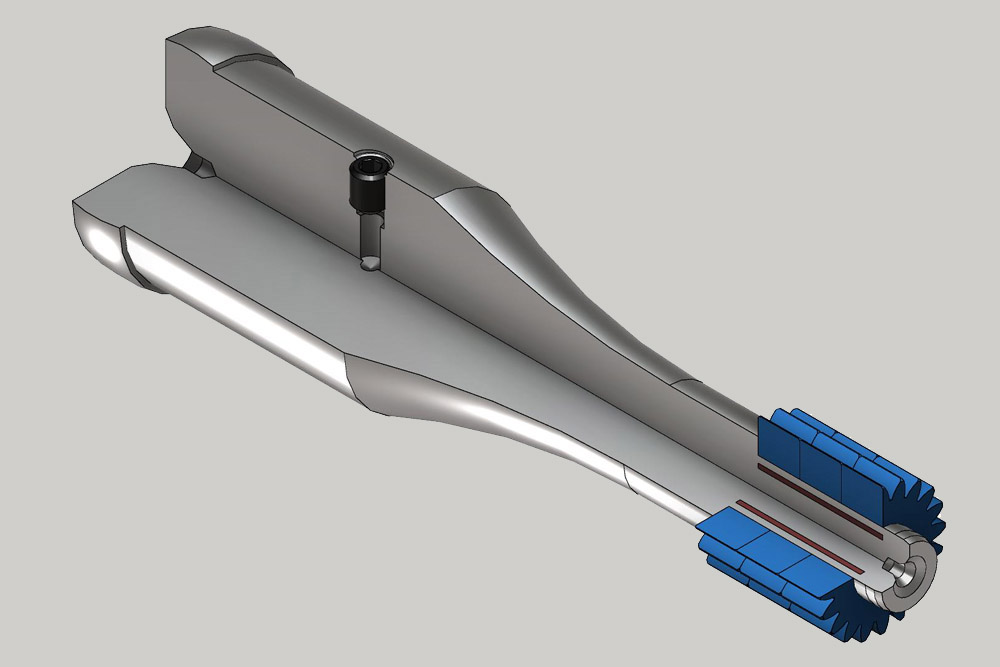

The drawing illustrates a Dinanath hydraulic Between centre gear grinding mandrel. The clamping is initiated axially with the help of a T-key on an outside station where the gear blanks are also pre-aligned. The prepared mandrel is then placed between centres on Gear grinding machine. In this case the pre-align station consists of auto tightening facility.

For clamping single component manual actuation is sufficient and there is no need of auto tightening unit.

There is another variety of Hydraulic gear grinding mandrel as machine spindle mounted. In this case there is auto loading and clamping pressure is initiated via. machine hydraulics.

The clamping accuracy is within 0.003 mm or less if desired.

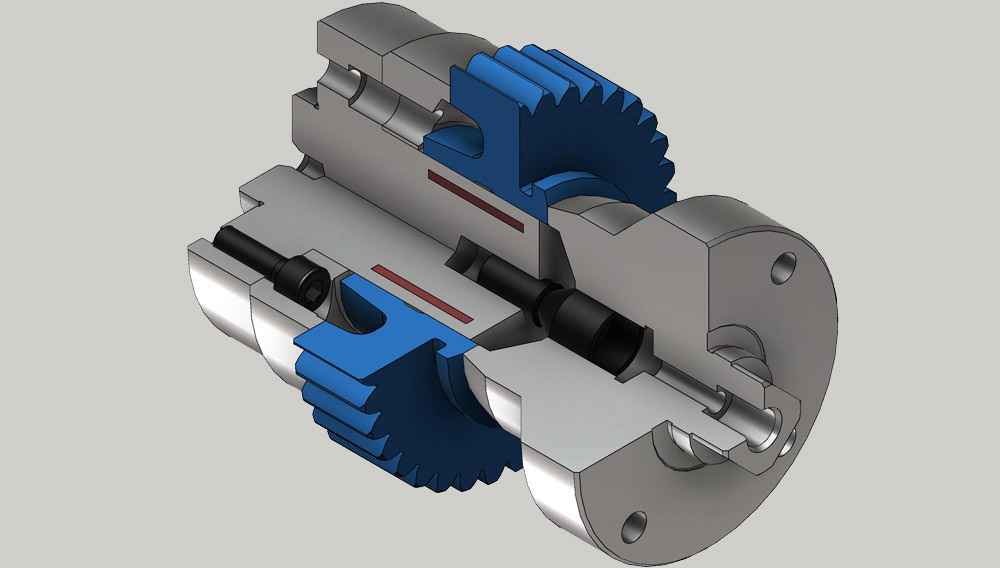

Gear Shaving

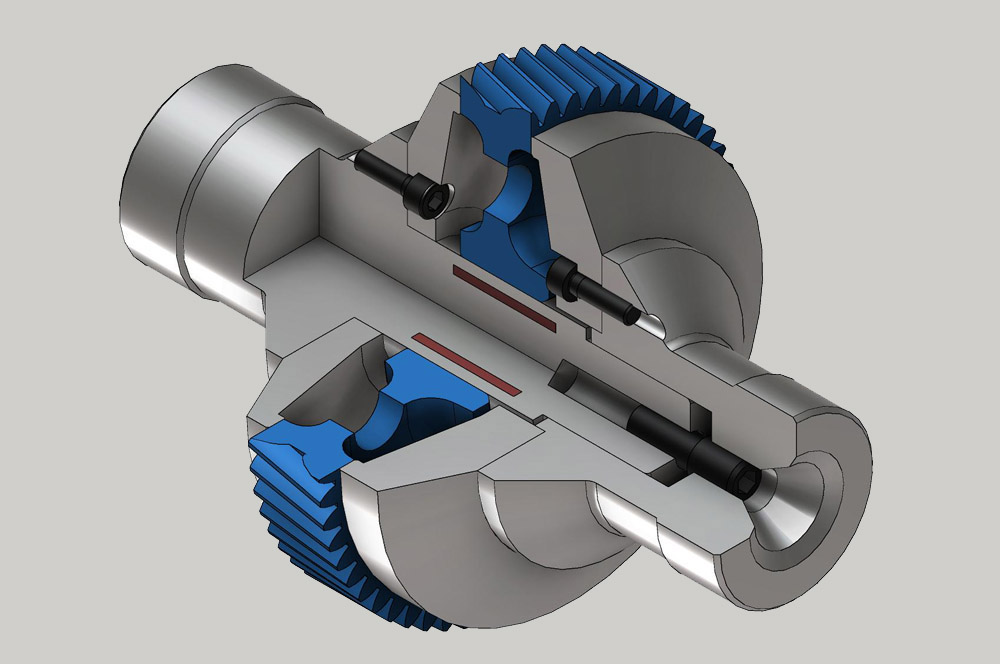

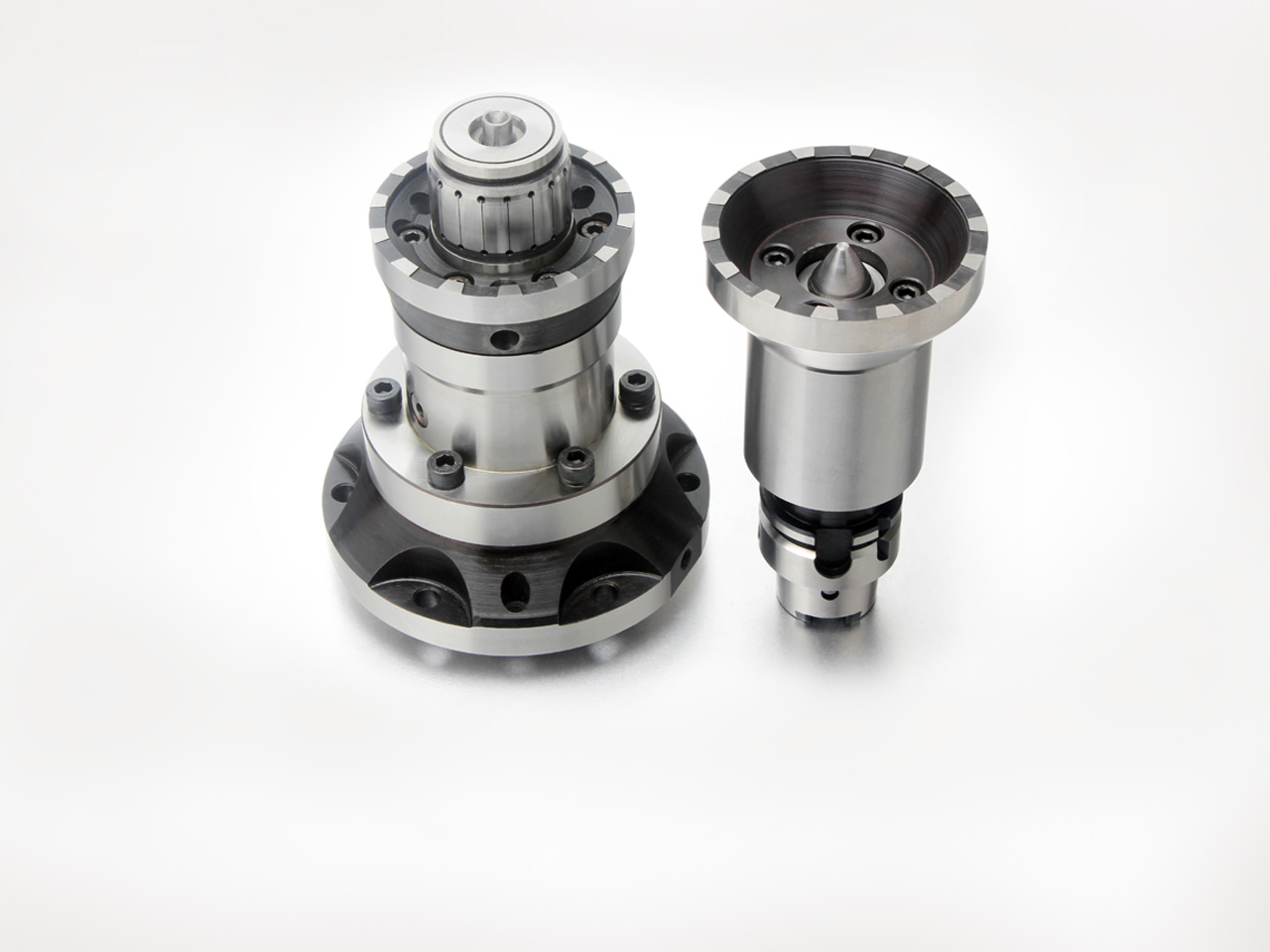

BETWEEN CENTRE AUTO ACTUATED SHAVING MANDREL

Between centre hydraulic gear shaving mandrels can be manual or auto actuation type. In this type work piece loading is done outside the machine. The work piece is loaded on one half, and then the second half is engaged.

In case of manual actuation gear clamping is done manually on one half outside the machine. In auto actuation type after engaging component on one half and the second half of the mandrel, the complete assembly is placed between centres on machine and centring and clamping is performed simultaneously via. axial pressure of tailstock against gear face.

The run out accuracy is below 0.005 mm.


MACHINE MOUNTED AUTO ACTUATED SHAVING MANDREL

In this type both halves of mandrel are mounted on opposite work piece spindles. These are suitable particularly for auto/ robotic loading.

The clamping and centring of mandrel is performed same as in case of auto actuated between centre type.

The run out accuracy is 0.003mm.

Gear Hobbing

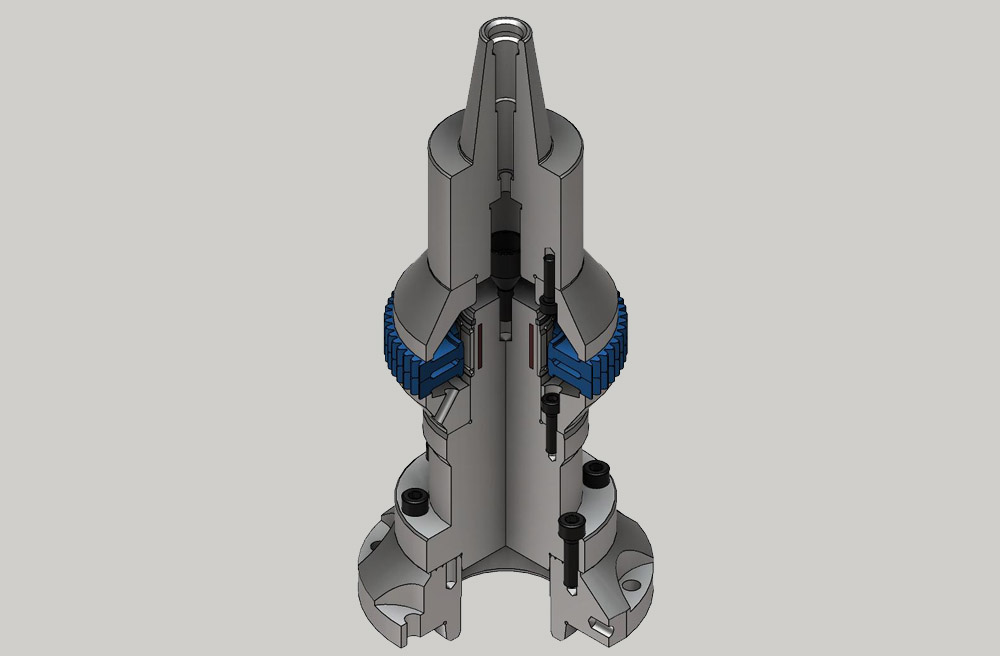

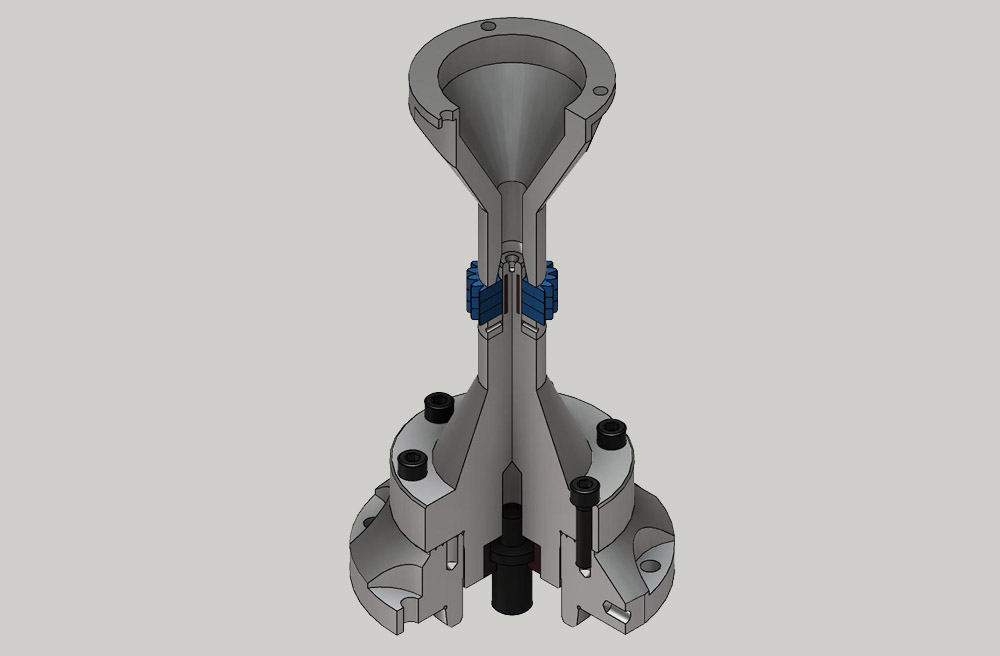

HOBBING MANDREL-TAILSTOCK/TOP ACTUATED

In this type centring of component and face clamping is performed simultaneously when the tailstock side is actuated. The clamping piston is actuated with a pin at the centre of tailstock. Face run out compensation can be provided with the help of floating attachment of tailstock side flange.




HOBBING MANDREL-DRAWBAR ACTUATED

In case of draw bar actuated type hobbing fixture the piston is actuated with the help of machine draw bar. For components having sufficient clamping length and root diameter closer to the bore it is possible to obtain the entire torque via. radial clamping. Multiple clamping is also possible.

Cylindrical Grinding

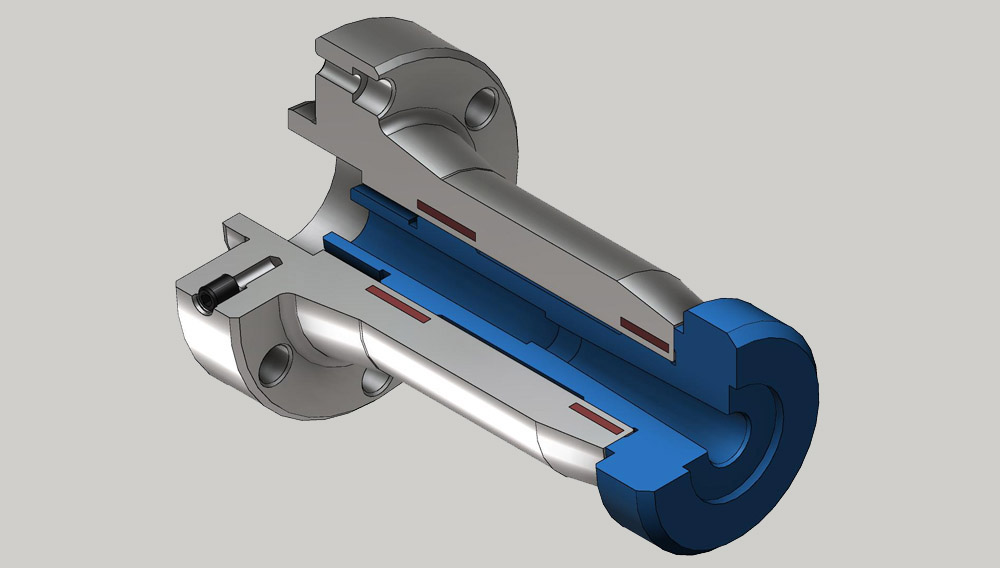

BORE GRINDING W.R.T. OD

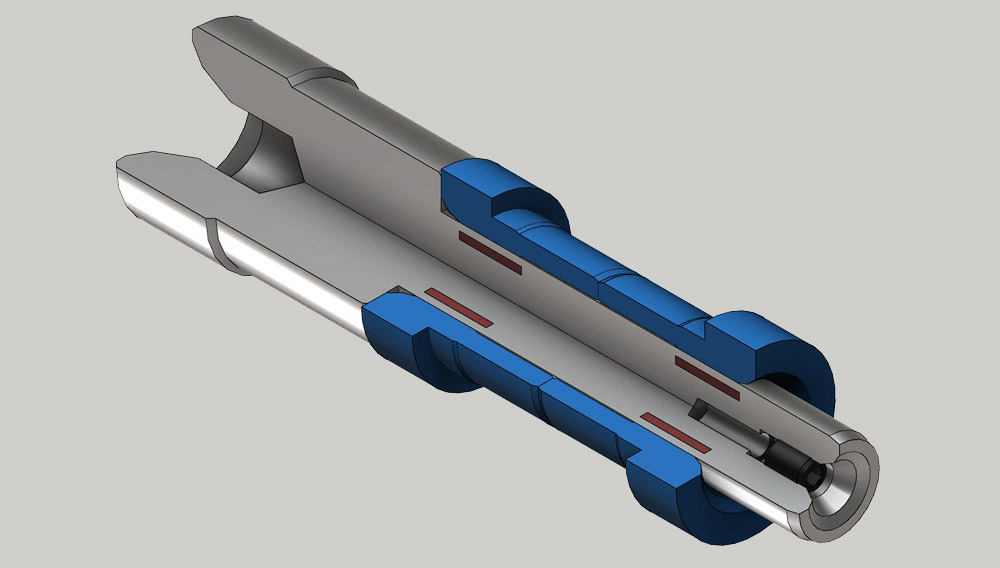

OD GRINDING W.R.T ID

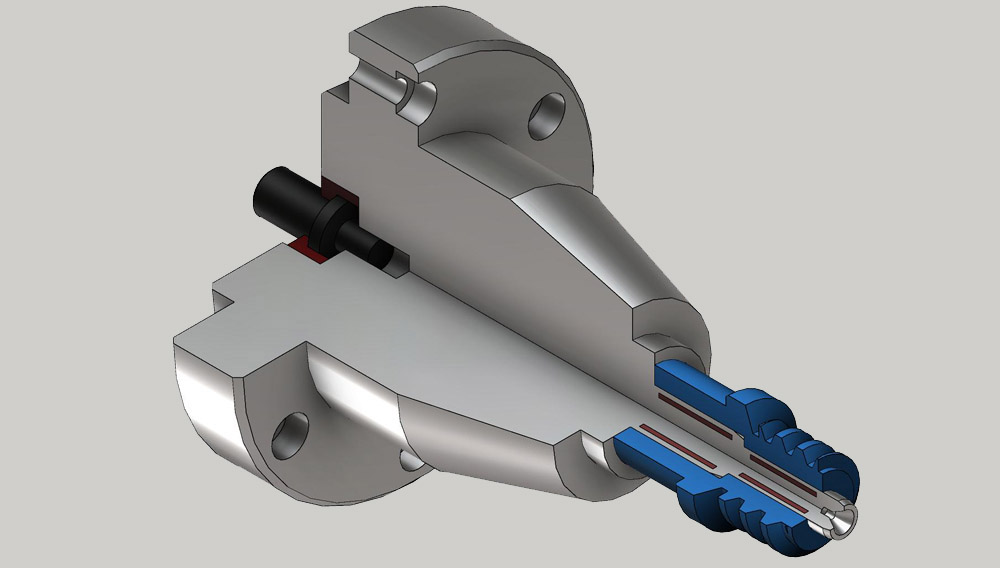

WORM AND ROTOR GRINDING

These mandrel can serve both operation i.e ID grinding w.r,t OD or OD Grinding w.r.t ID These mandrels are preferred due to the consistent repeatability and accuracy that can be achieved within the precise run-out requirements of cylindrical grinding operation. Multiple diameter clamping is possible.

Run-out Accuracy 0.003mm

Testing / Inspection

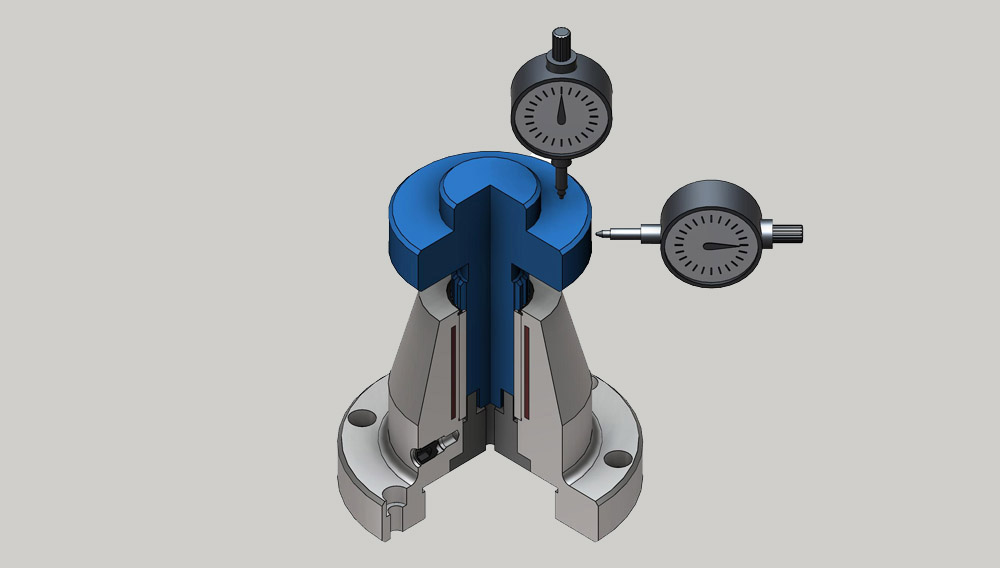

CONCENTRICITY CHEKING FIXTURE WITH MANDREL

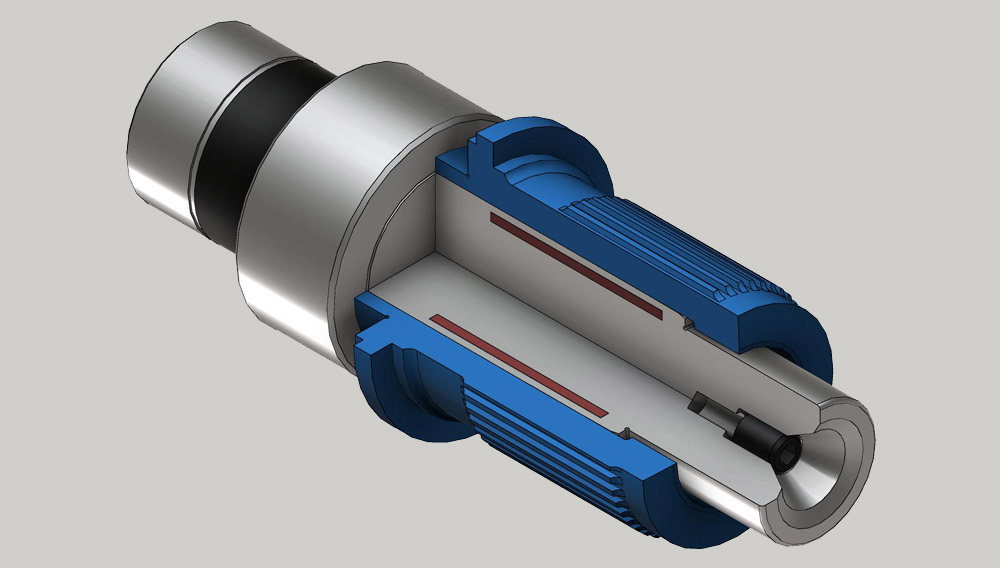

INSPECTION MANDREL

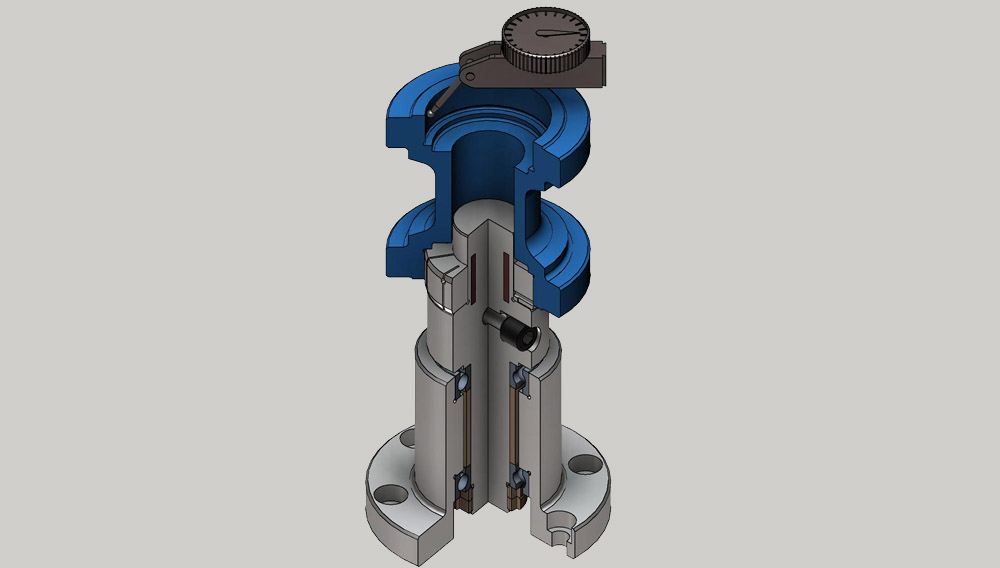

RUNOUT INSPECTION

These mandrels have wide application in the field such as checking redial and axial run-out, inspecting tooth profile and many more.

Run-out accuracy with in 0.003mm or less if required is achievable.

Balancing

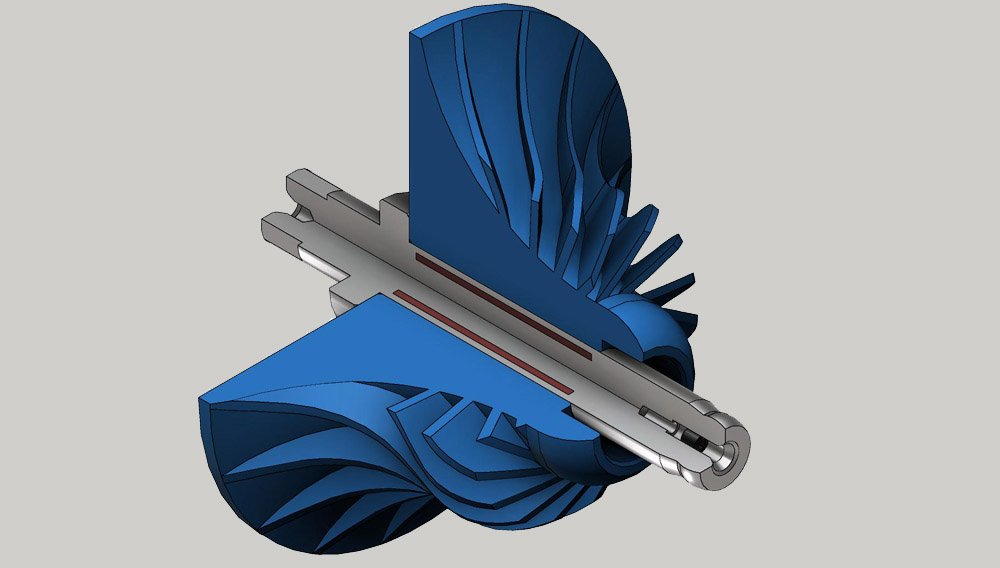

IMPELLER BALANCING MANDREL

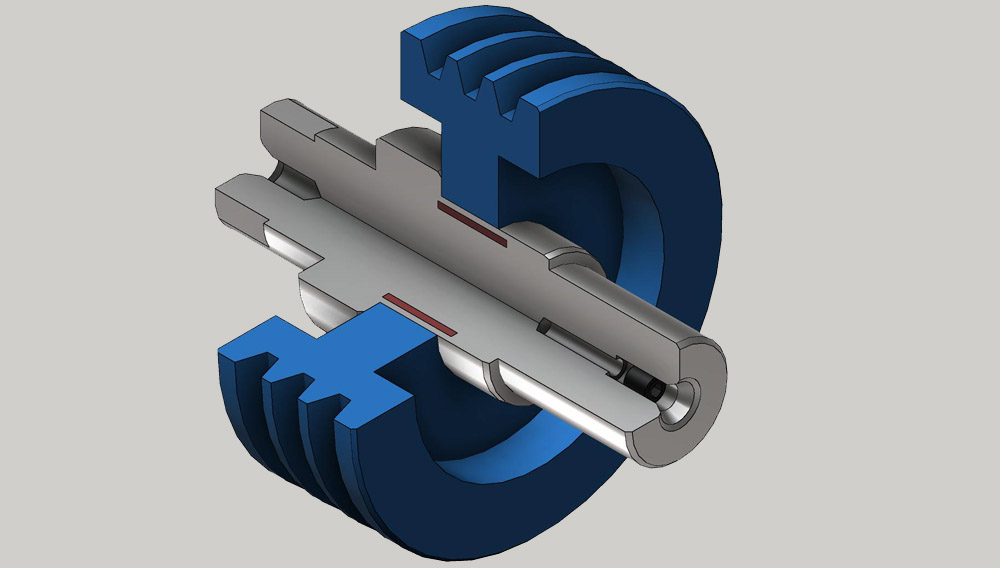

PULLEY BALANCING MANDREL

These mandrels are available for dynamic balancing of work pieces. Mandrels are manually actuated.

Run-out Accuracy below 0.003mm

Turning

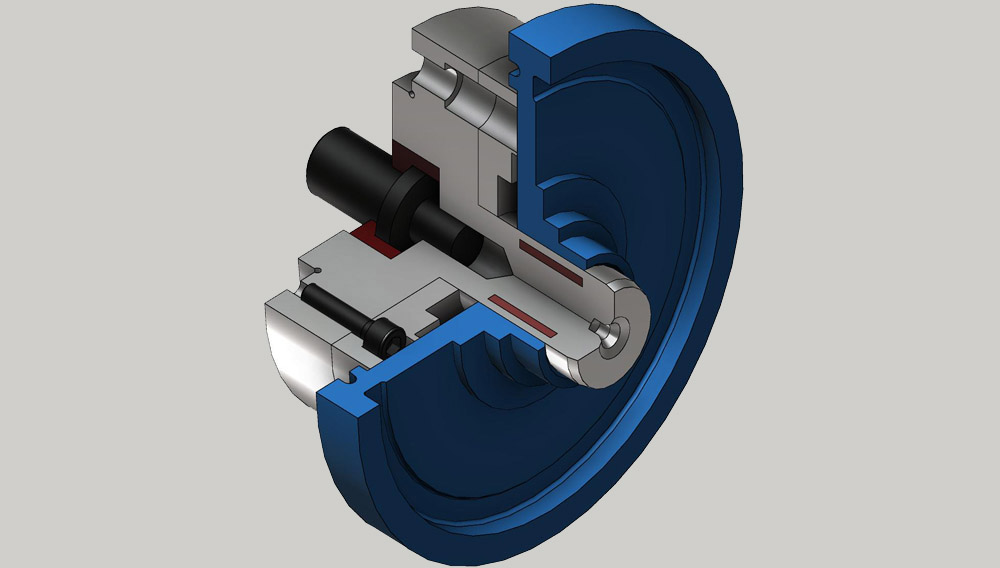

HARD TURNING MANDREL

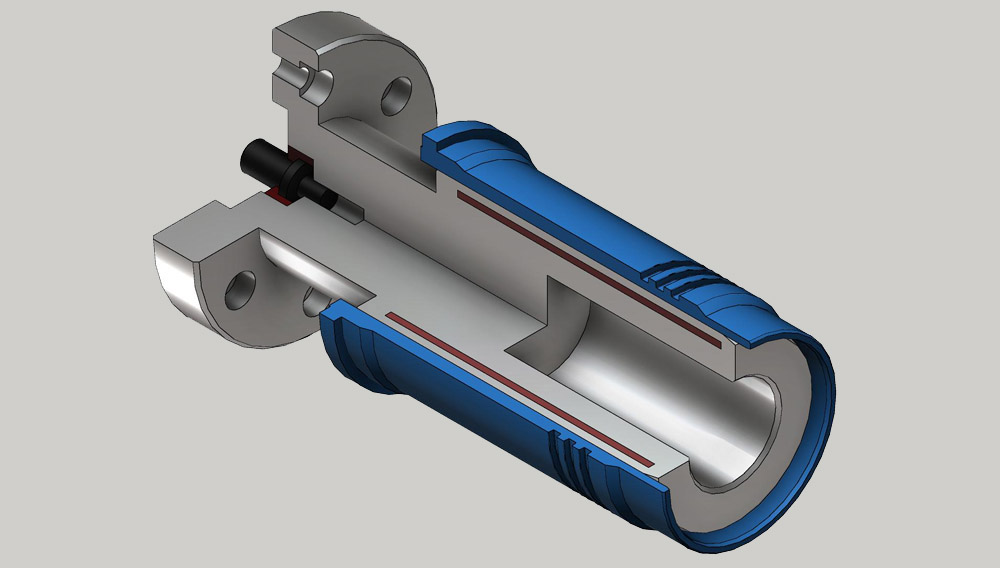

LINER TURNING

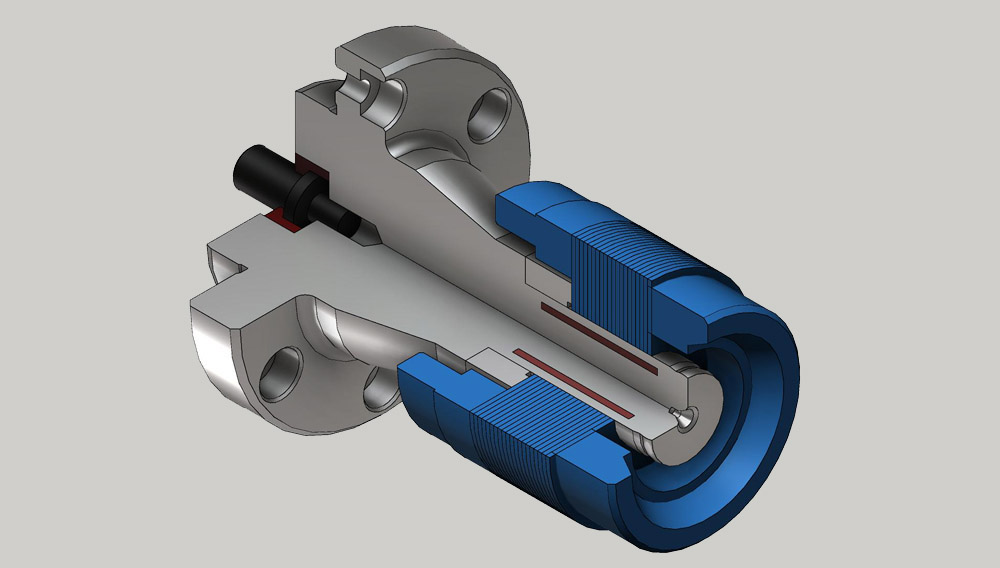

ROTOR TURNING W.R.T BORE

Hydraulic mandrel and chucks are available for hard turning and boring operation. These mandrels can sustain high machining torque of turning operation.

Run-out accuracy 0.003mm

Special Application

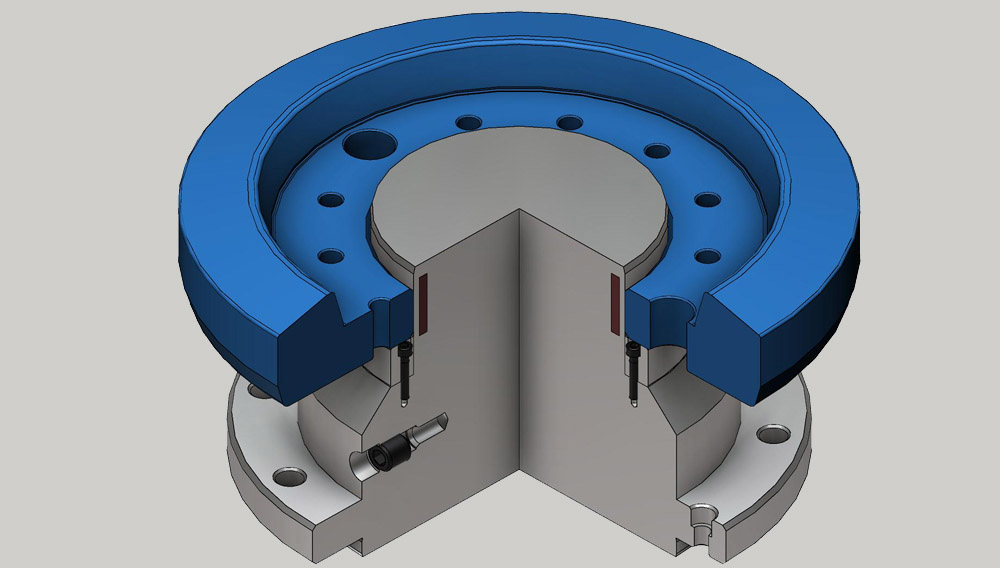

MILLING, BORING AND PCD DRILLING

When slot milling and PCD drilling require close relation w.r.t. bore then hydraulic mandrel is perfect choice. Centring and clamping of work piece is done with hydraulic mandrel. Bore of work piece gets perfectly aligned and machining operation can be performed. High clamping torque is achieved and tool vibrations are also absorbed.

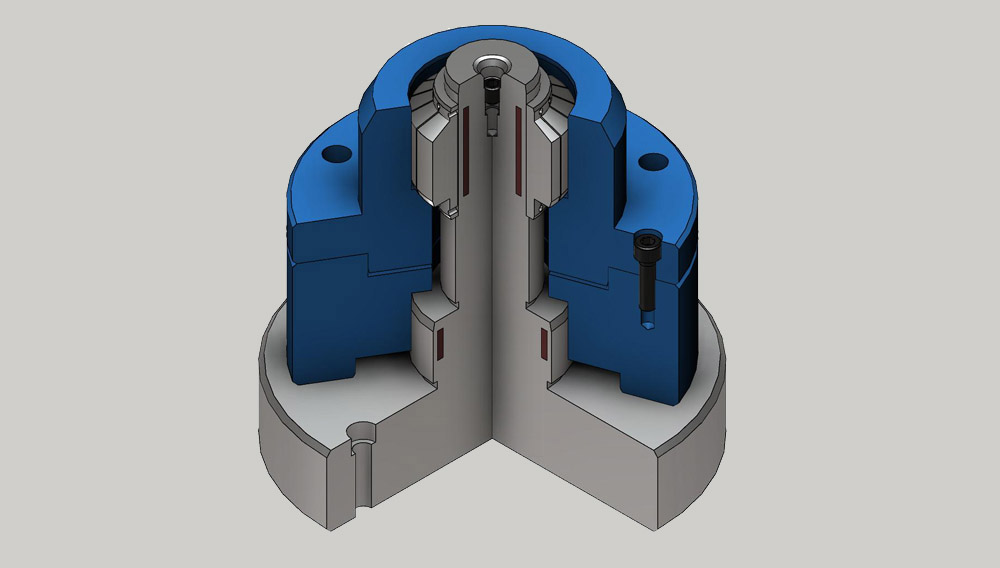

MANDRELS FOR ALIGNMENT IN ASSEMBLY

The diagram shows a typical application where two parts to be assembled are perfectly pre-aligned before clamping to each other. Bottom part of the assembly is centred by hydraulic expanding sleeve of mandrel and the top part which is having big bore is centred with the help of a slitted auxiliary sleeve. Both parts are clamped within 0.003 mm concentricity.

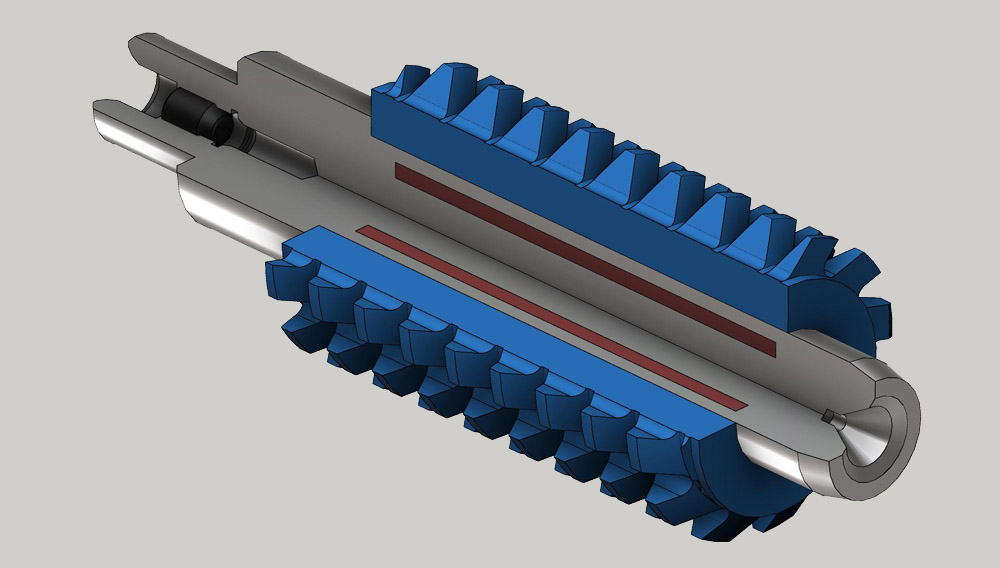

HOB GRINDING

Hob is clamped on hydraulic mandrel with manual actuation. The bore is centred within 0.002 mm accuracy and grinding operation on OD can be performed between centres on machine. Hydraulic mandrel can be used for hob production, inspection and re-sharpening purpose.

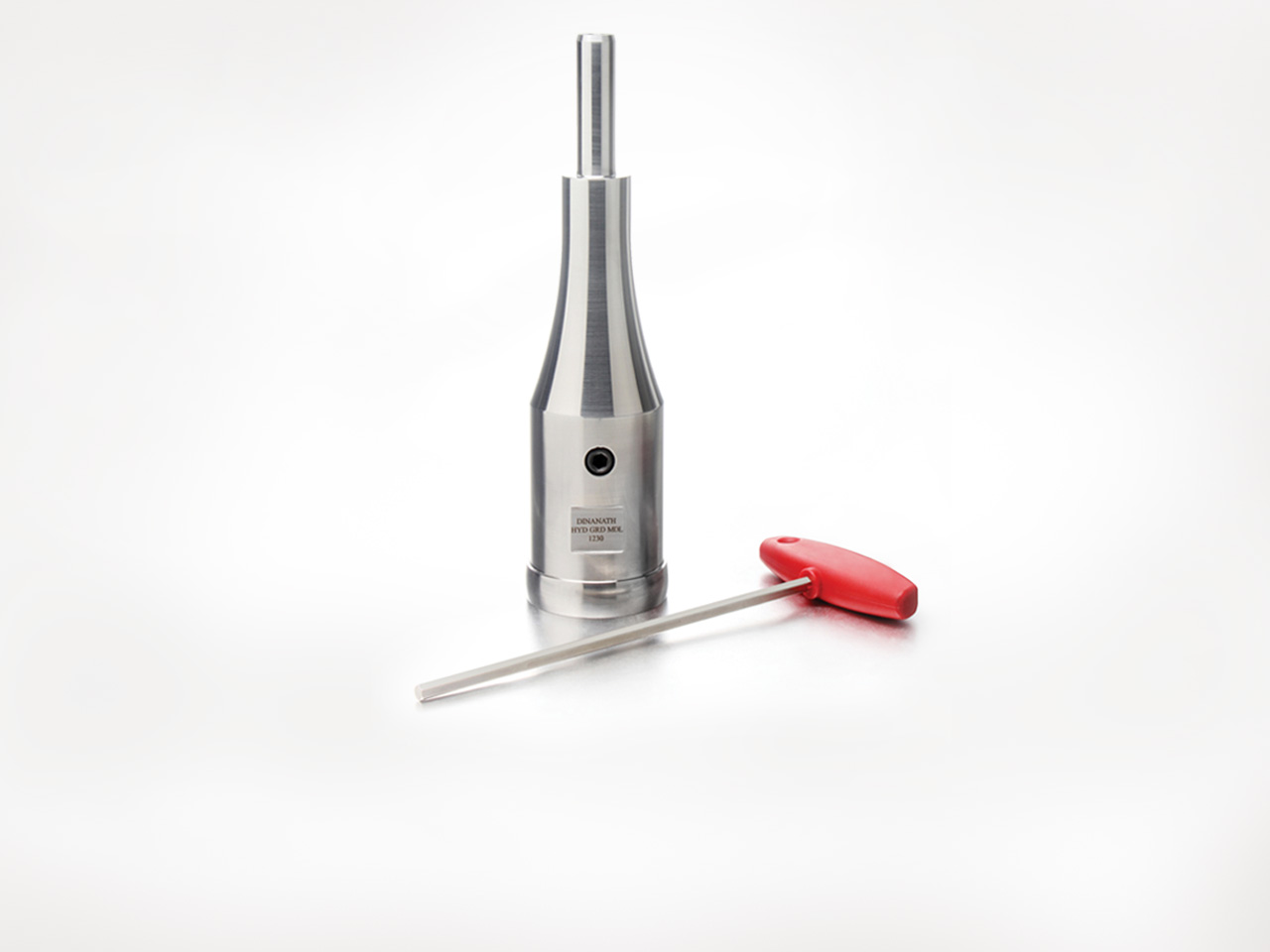

TOOL GRINDING

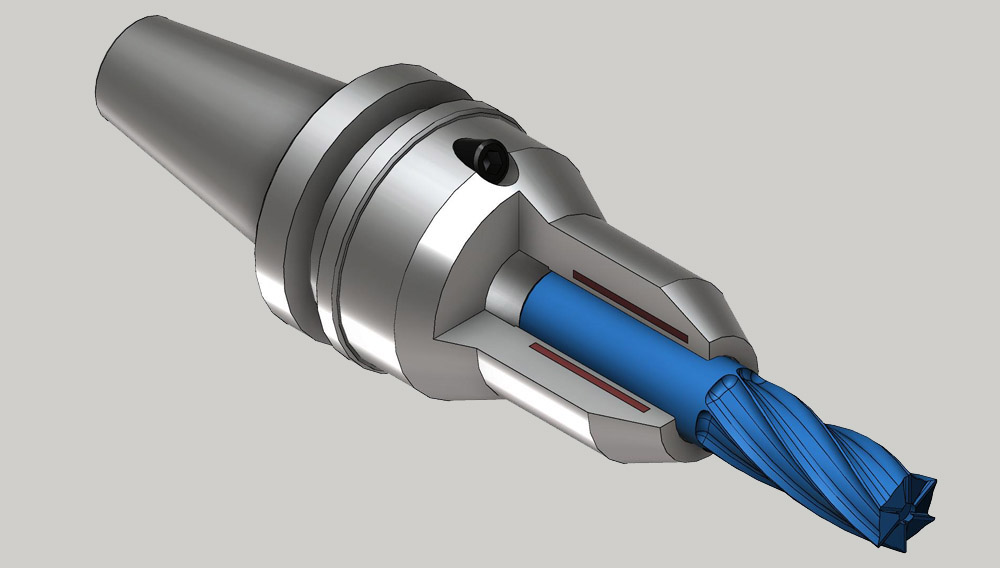

Hydraulic expanding mandrels also find application for tool manufacturing. The diagram shows hydraulic mandrel for carbide end mill manufacturing. Carbide blank is clamped on mandrel within 0.003 mm on 4*D. Mandrels can be designed and manufactured according to different machine spindle tapers and actuation methods.
